Seetec SC173-HSD-56 17.3 Inch 1RU Pull-Out Rack Mount Monitor

Seetec SC173-HSD-56 17.3 Inch 1RU Pull-Out Rack Mount Monitor

Regular price $769.00
Regular price $799.99 Sale price $769.00
Sale Sold out
Taxes included. Shipping calculated at checkout.

Low stock: 9 left

rack mount monitor

monitor function
17.3-inch 3G-SDI/HDMI Pull-out Monitor

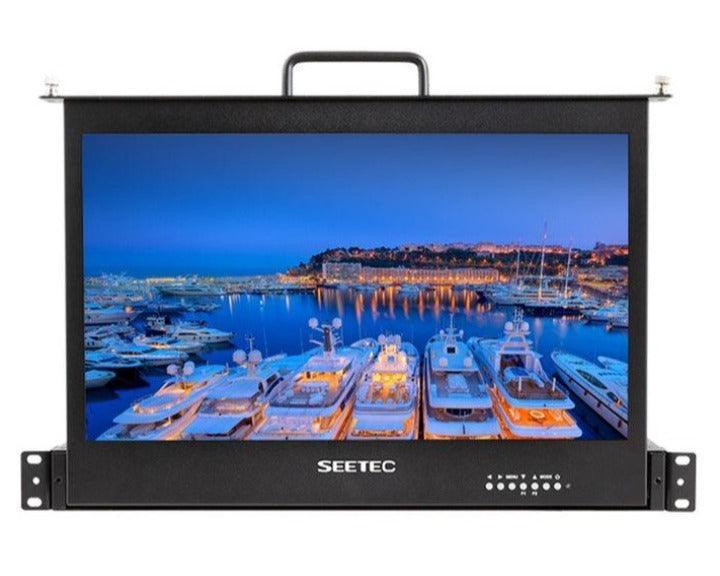

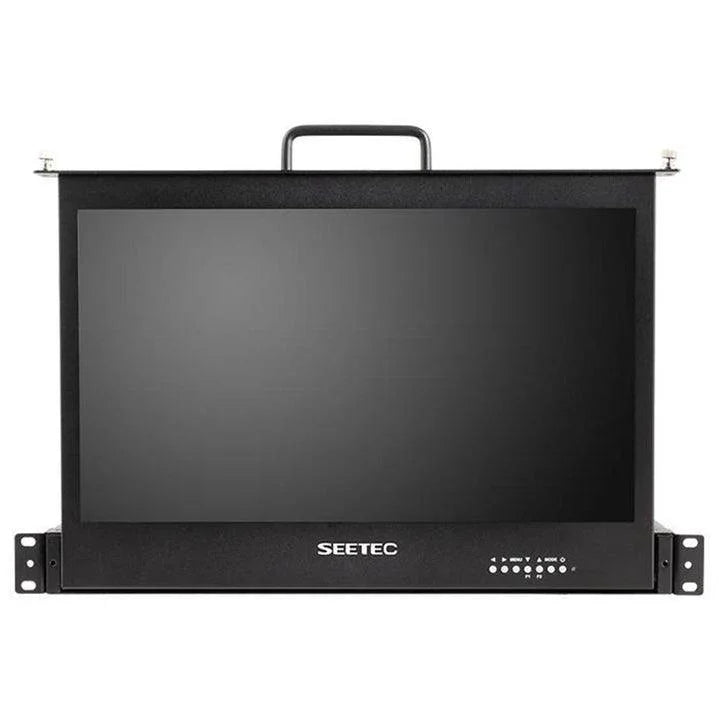

The metal housing of SC173-HSD-56 boasts a crisp 17.3" IPS display panel with 1920x1080 resolution. It has a host of inputs including 3G-SDI BNC , HDMI, DVI, VGA, YPbPr, Video, and Audio making it a perfect fit for any broadcast or live event production. For added stow-and-go convenience, the SC173-HSD-56 is designed with 1RU rack drawer design for rack mounting or as a stand alone unit. It an be folded down and slid into rack drawer to save space or to transport. It has multiple functions to help monitoring, including focus assist, image zoom, center marker, screen marker, image freeze, check field etc. This innovative drawer monitor is a cost-effective "all-in-one" solution for broadcast, post production, on set monitoring, broadcast trucks and more!


Pull out Monitor




See Everything in Stunning Detail
The SC173-HSD-56 has a full HD 1920 x 1080 native resolution panel at 17.3". The IPS screen panel gives crisp pictures and sharp color contrast, resulting in the high fidelity picture quality for both text and video alike. Combine that with its 178 degrees (horizontal and vertical) wide viewing angle and you'll see the same high-quality image from nearly any viewing position, whether you're leaning back in your chair or you're shifting from one side to the other.

See Everything in Stunning Detail

Simple and Intuitive Button Operation
It adopts simple and intuitive key operation, and is equipped with two shortcut keys F1 and F2, you can be set the required shortcut function.

Simple and Intuitive Button Operation

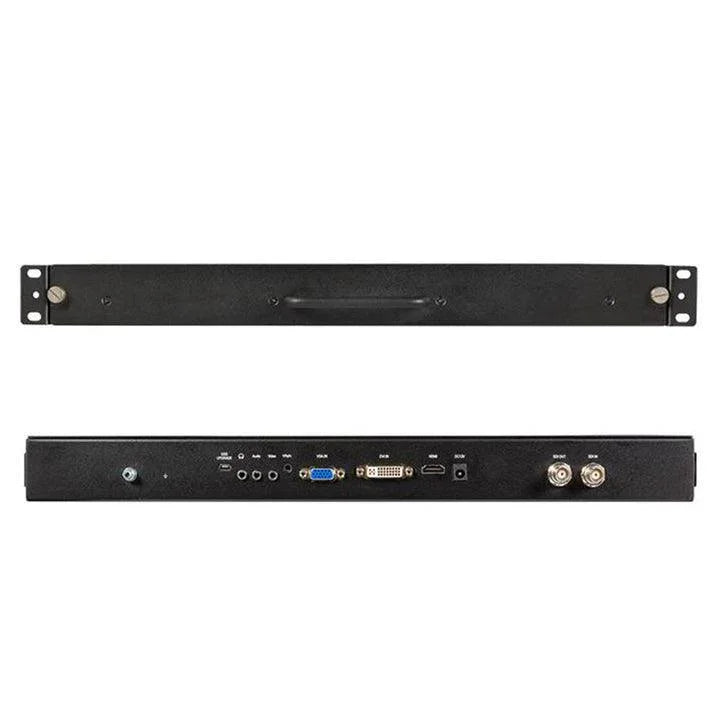

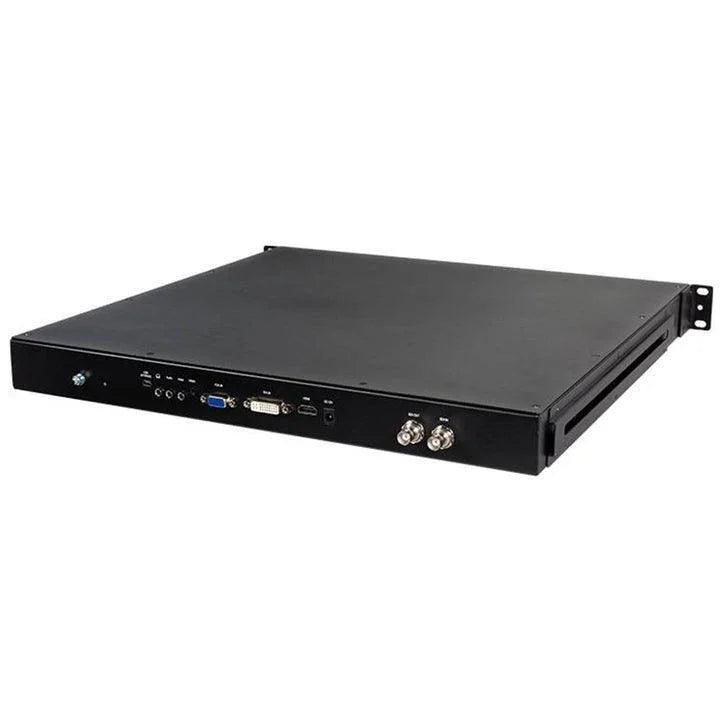

Easy Connectivity with Your Equipment
SC173-HSD-56 features a machined metal design that’s durable and extremely strong! From its machined metal front to its professional broadcast connections, the SC173-HSD-56 has been designed to handle the stress of professional broadcast, television, film and commercial production on the road or in your studio! Includes SDI input/output, HDMI, DVI, VGA, YPbPr, Video, Audio input, and you can also monitor audio using the 3.5mm stereo headphone jack . For power, there’s a 12V DC input.

Easy Connectivity with Your Equipment

1 ru rackmount monitor

Advanced Monitoring Tools
It has multiple functions to help monitoring, including focus assist, image zoom, image freeze, check field, center marker, screen marker, image flip, color temperature adjust etc. These assist users to accurately monitor when shooting, making and playing movies/ videos.

Advanced Monitoring Tools

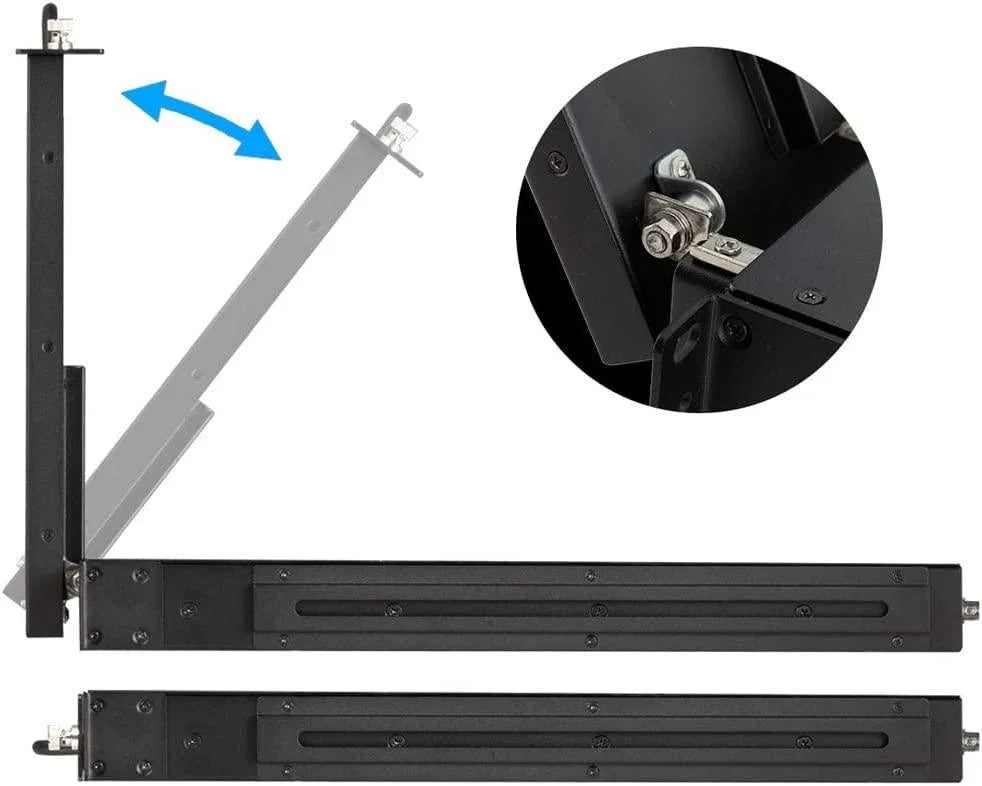

Innovative Design Saves Precious Rack Space
If the rack space is tight, the SC173-HSD-56 was designed with you in mind. Metal housing with pull-out drawer type design, which occupies just 1 RU (rack unit) of space when it's housed and provides perfect protection for a 17.3 inch monitor from shock and drop. A 1RU rack design not only can save the space of rack greatly with a 17.3-inch monitor, but also viewed from different angles when monitoring. Easily pull it out when you need it, fold it up and store it after use. It's the ideal studio monitor for applications where space is constrained.

Innovative Design Saves Precious Rack Space

FEATURES
1. Wide view angle screen, Full HD 1920x1080, bright, colorful display
2. SDI (Optional), 4K HDMI, DVI, VGA, YPbPr, Video, Audio inputs and SDI (Optional) loop-through output
3. Special Features:
* Peaking Focus Assist (Red highlight over parts of the monochrome image in focus)
* Check Field (Red, Green, Blue, Mono)
* Pixel to Pixel
* Center Marker
* Safe Marker (80%, 85%, 90%, 93%, 96%, 2.35:1)
* Image Flip (Horizontal, Vertical, Hor&Ver)
* Image Freeze
* Zoom (4X, 9X, 16X)
* Scan Mode (Under Scan, Over Scan)
* Zoom All
* U/D & L/R Zoom
4. Monitoring via 3.5mm stereo headphone jack

SPECIFICATIONS

Display Spec.
 Model  SC173-HSD-56
 Screen Size  17.3"
 Color Depth  16.7M
 Resolution  1920×1080 pixels
 Dot pitch  0.1989(H)×0.1989(V) mm
 Aspect Ratio  16:9
 Brightness  300cd/m²
 Contrast Ratio  700:1
 Backlight  LED
 Viewing Angle  89°/89°(L/R) 89°/89°(U/D)
Input
 1 X BNC  SDI
 1 X HDMI  HDMI
 1 X DVI  DVI
 1 X VGA  VGA
 1 X YPbPr  YPbPr
 1 X Video  Video
 1 X RCA  Audio
General
 Input Voltage  DC7-24V
 Power Consumption  ≤10W
 Working Temperature  -10°C~50°C
 Storage Temperature  -20°C~60°C
 Unit Size   485Lx462Hx43.5D (mm)
 Unit Weight  7.7kg



View full details
