Seetec P173-9HSD-RM 17.3 Inch 1920X1080 Rackmount Broadcast Monitor
Seetec P173-9HSD-RM 17.3 Inch 1920X1080 Rackmount Broadcast Monitor
Low stock: 9 left
SEETEC P173-9HSD-RM Monitor Overview

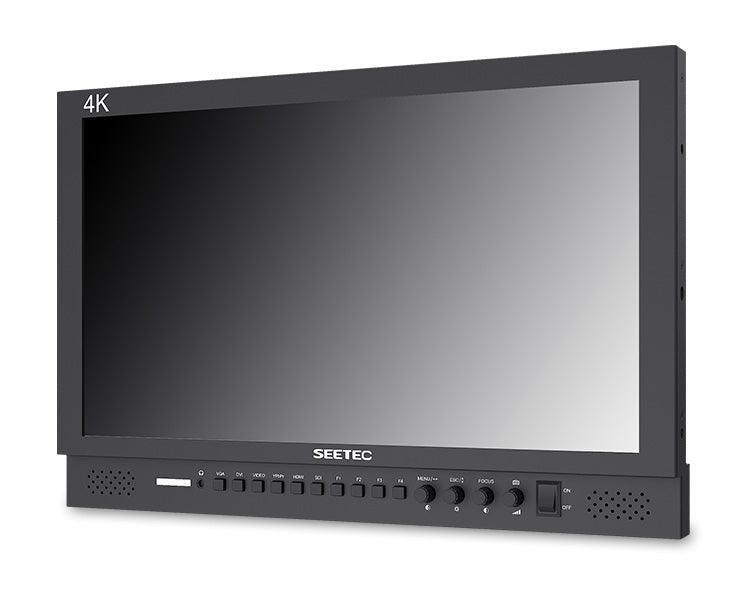

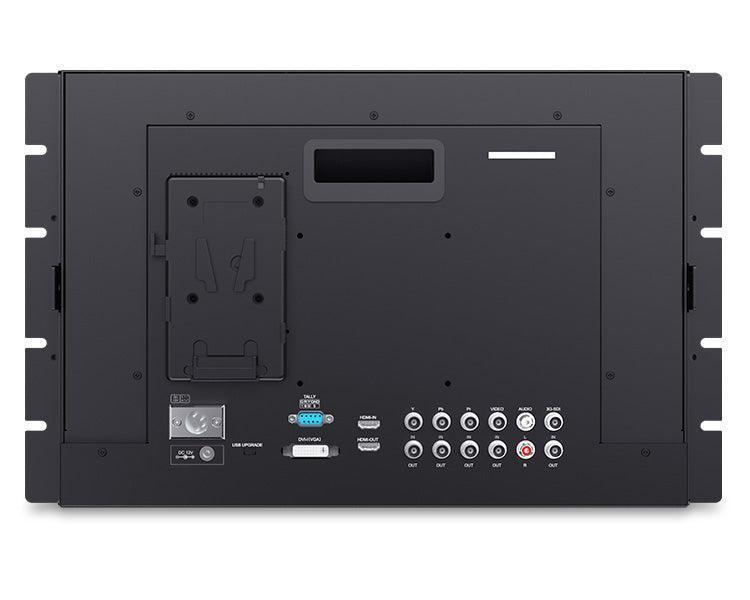

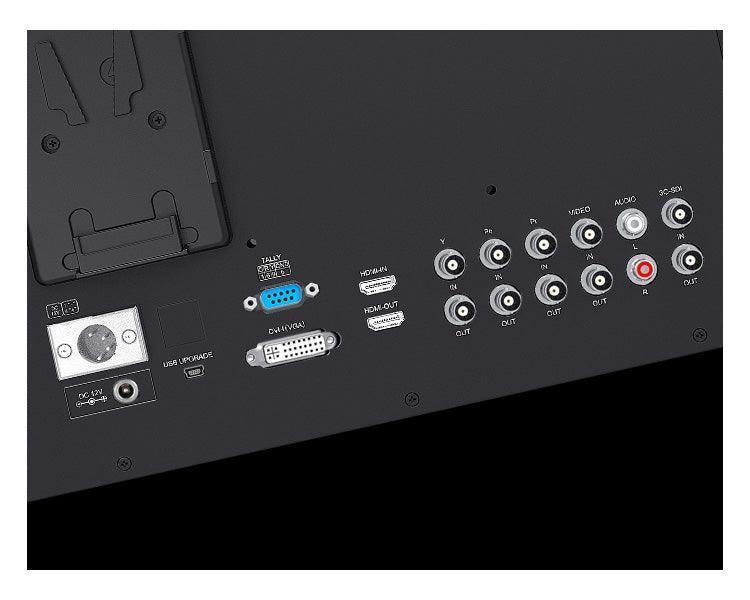

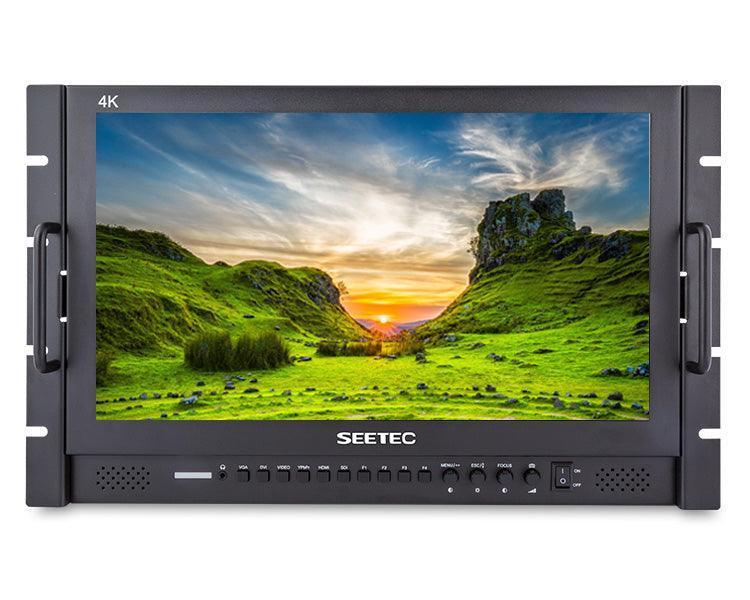

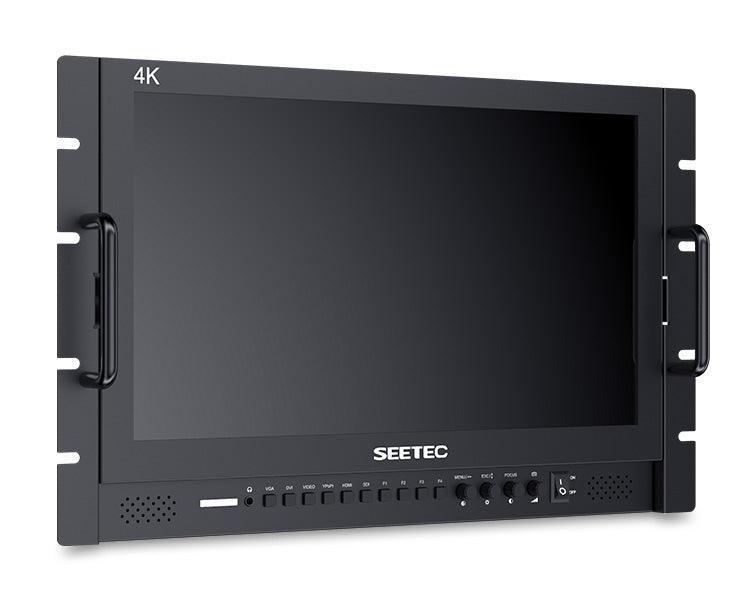

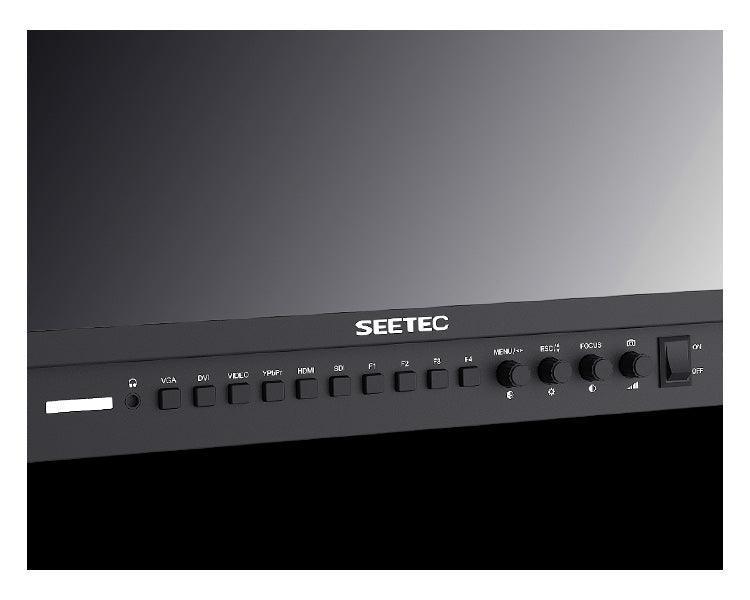

The 17.3" 4K Rackmount Broadcast Monitor from SEETEC features a 1920 x 1080 display and supports up to UHD 4K30 signals. It offers HDMI, 3G-SDI, and analog inputs and outputs, RCA audio inputs, and a tally port. These connections are provided on the rear panel along with an integrated V-mount battery plate and 4-pin XLR and barrel power inputs. A headphone jack, built-in speakers, 3-color LED tally light, and control and function buttons are provided on the front. This rackmount version comes with rack ears with built-in handles on the front. The monitor's image analysis functions include peaking focus assist, zoom, and pixel-to-pixel, and these are assignable across the four front-panel function buttons
Key Features
- 1920 x 1080 resolution display
- Supports up to UHD 4K30 signals
- HDMI, 3G-SDI, component BNC, composite BNC, DVI, and RCA audio inputs
- HDMI, 3G-SDI, component BNC, composite BNC outputs
- 178 / 178° viewing angle
- Color depth: 16.7 million colors
- Tally port
- Built-in red/green/yellow LED tally indicators
- 3.5mm stereo headphone jack
- Built-in speakers
- Integrated V-mount plate
- 300 cd/m² brightness
- 4-pin XLR and DC barrel power ports
1920X1080 Full HD Panel
With the P173-9HSD-RM's 17.3-inch 1920×1080 Full HD panel what you see is truly viewing angles outputting crisp, clear shots on the field, which means less time in the editing room. The P173-9HSD-RM's Full HD Panel is the tool of choice for high quality color reproduction.Rugged and Durable, Easy to Dissipate Heat
The full aluminum alloy frame not only make the device more solid and durable, but also solve the problem of heat dissipation. The equipped cast iron hand grips, easy to hold.Extremely Thin Design, Suitable Size
P173-9HSD-RM with extremely body, its 7RU design allows it to be easily integrated into a studio or post-production rackmount setup.Accurate Color Reproduction
Use Rec.709 color standard
SEETEC monitor support ITU standards and HD video Rec.709 standard consistent color space, advanced image processing technology, so that the image clearly presented, the color is extremely natural, to ensure accurate color reproduction, to reproduce the physical nature of shooting, enabling users to accurately evaluate the quality of various input video signals
Innovation OSD Operation
P173-9HSD-RM not only set up four "F key" for peaking focus assist, check field, camera mode function, pixel to pixel, Center Marker, Safe Marker, Image Flip and so on, reserves the knob for professional users. Double functions and knob type coding switch are SEETEC's exclusive technology feature, which will bring you more convenient and rapid operate feeling.Professional Monitoring
P173-9HSD-RM is an incredibly high quality monitor that's versatile enough to be used from the broadcast facility, mobile live production or on set for feature film production! The monitor comes with 3G/HD/SD-SDI, HDMI, YPbPr, Audio, Video, DVI inputs. Multiple input formats to meet all HD, SD, analogue video signal input and display demand professional functions set.Professional Auxiliary Shooting Functions
SEETEC monitor is ideal for high end broadcast monitoring because they feature high quality focus assist function, also includes check field, image freeze, image flip, center marker, safe frame, color temperature adjust, assist users to accurately monitor when shooting, making and playing movies/videos.
Display Spec
Model | P173-9HSD-RM |
Screen Size | 17.3" |
Color Depth | 16.7M |
Resolution | 1920×1080 pixels |
Pixel Pitch | 0.1989(H)×0.1989(V) mm |
Aspect Ratio | 16:9 |
Brightness | 300cd/m² |
Contrast Ratio | 700:1 |
Backlight | LED |
Viewing Angle | 89°/89°(L/R) 89°/89°(U/D) |
Input Voltage | DC9~24V |
Power Consumption | ≤26W |
Working Temperature | -10°C~50°C |
Storage Temperature | -20°C~60°C |
Unit Size | 481.6L×297H×35D mm |
Unit Weight | 3.4kg |
Outer Carton Qty | 2 |
Outer Carton Size | 535*350*425 (mm) |
Gross Weight | 9.795kgs |
Standard Accessories
- 1× Mini HDMI Cable
- 1× V Battery Plate
- 1× 3A Power Adapter
- 1× Tally Kit
- 2× Hanging Ears
- 1× Operation Manual
