Lilliput Q28 28 inch 12G-SDI professional production studio monitor

PRODUCT DESCRIPTION

Q28 28 inch 12G-SDI professional broadcast production studio monitor

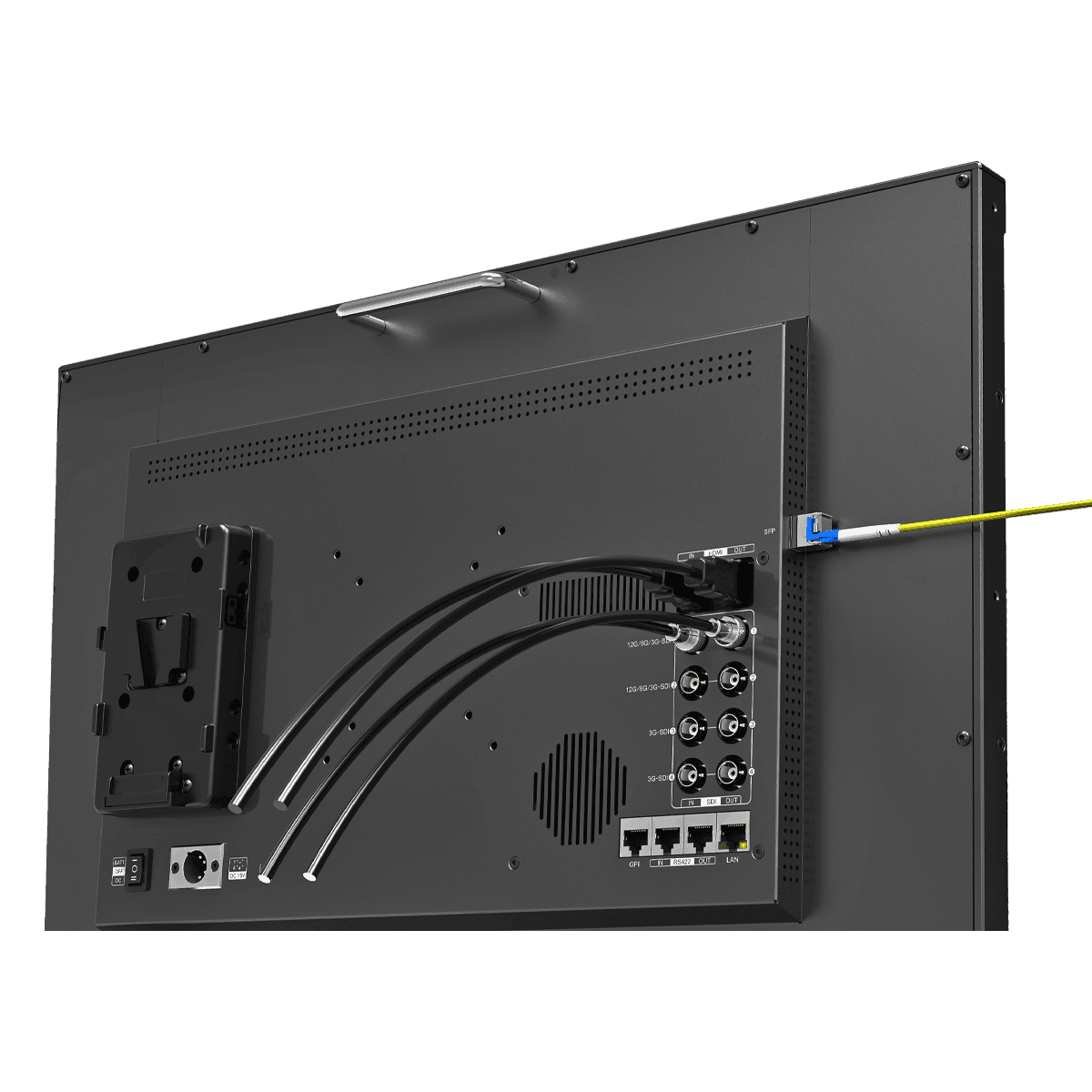

The Lilliput Q28 28" 12G-SDI Professional Production Studio Monitor with Carrying Case (Gold Mount)) provides the user with a crystal clear 3840 x 2160 screen resolution as well as the ability to stream DCI 4K60 signals in a letterboxed view. The display includes four 12G-SDI inputs, one HDMI input with respective loop outputs, and a 12G-SFP port for fibre-optic connectivity, all supporting 4K and embedded, multichannel digital audio.

Color Temperature
According to the different senses of the pictures, filmmaker have their own preferences for different color temperatures. The default is 3200K / 5500K / 6500K / 7500K / 9300K five color temperature conditions, can also be customized according to user needs.

Remote Control Application
Connect your computer to control the monitor via applications. The interfaces of RS422 In and RS422 Out can realize synchronization control of multiple monitors.

Audio Vector (Lissajous)
The Lissajous shape is generated by graphing the left signal on one axis against the right signal on the other axis. It used to test the phase of mono audio signal and phase relationships depends on its wavelength.Complex audio frequency content will make the shape look like a complete mess so it is usually used in post production.

3D-LUT
3D-LUT is a table for quickly looking up and output specific color data. By loading different 3D-LUT tables, it can quickly recombine color tone to form different color styles. Built-in 3D-LUT, featuring 17 default logs and 6 user logs.

Packing List

• Lilliput Q28 28" 16:9 4K UHD HDR Broadcast Studio Monitor
• V-Mount Battery Plate
• 15V DC Power Adapter
• VESA Mount Plate
• Base Bracket
• USB Flash Disk
• Lilliput 1 Year Limited Warranty
