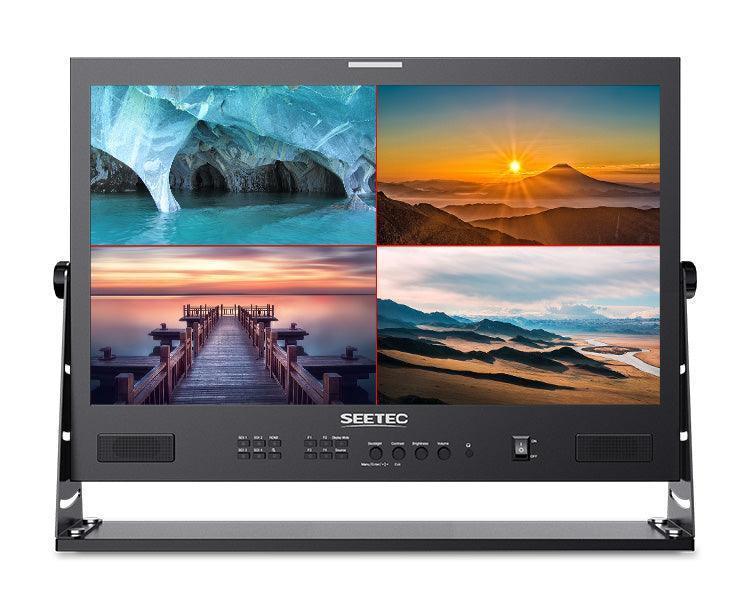

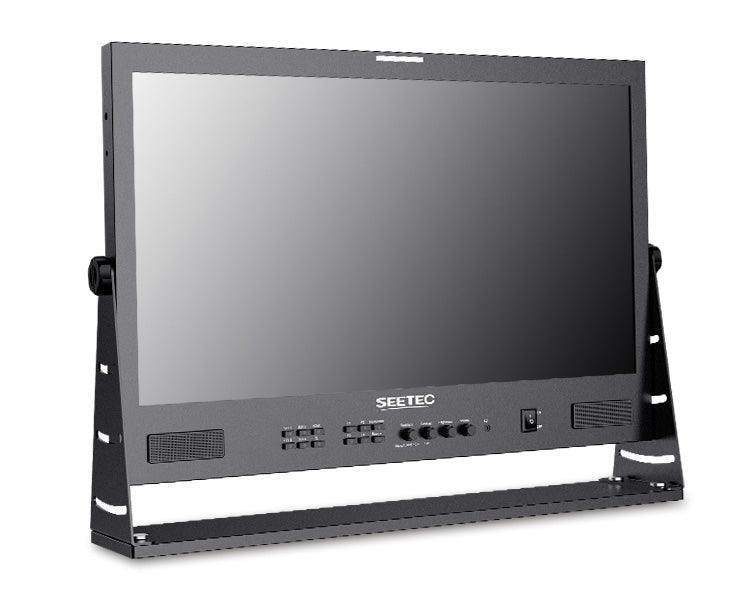

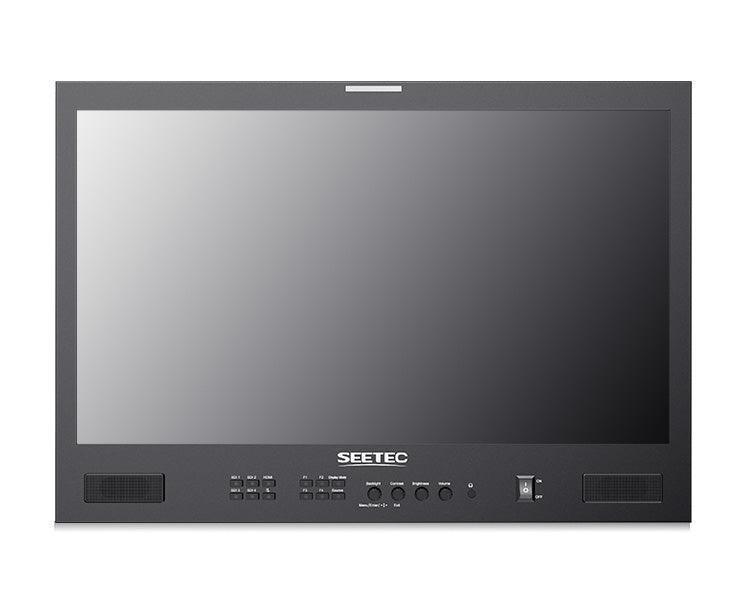

Seetec Atem215S 21.5 Inch 1920X1080 Production Broadcast Monitor

Seetec Atem215S 21.5 Inch 1920X1080 Production Broadcast Monitor

Prix habituel $1,099.00
Prix habituel Prix promotionnel $1,099.00
En vente Épuisé
Taxes incluses. Frais d'expédition calculés à l'étape de paiement.

seetec monitor

 SEETEC ATEM215S is a full HD broadcast monitor, equipped with 4x3G-SDI inputs and outputs, 1 x HDMI input interface and RS485, GPI control interface. Adopts Rec.709 color standard, display vivid images and professional effects. Rugged and durable aluminium housing; With 3D-LUT, waveform, vectorscope, histogram, peaking focus and other wonderful functions, all of functions can be easily operated and controlled via the front panel buttons. It supports VESA standard, and can be bracket-mounted or wall-mounted installation. It is an ideal monitor for live production, broadcast and post-production!

3g sdi monitor

21.5-inch Full HD LCD
The ATEM215S adopts a 21.5-inch LCD panel, with high resolution 1920x1080, accurate color reproduction, provides you natural and clear image; 250cd/㎡ brightness, 1000:1 contrast ratio, 178° wide viewing angle, allows you to see clearly no matter you monitor from which angle.

monitor sdi

Rugged and durable, easy to dissipate heat
The full aluminum alloy frame not only make the device more solid and durable, but also solve the problem of heat dissipation.

hd sdi monitor

Accurate Color Reproduction
Use Rec.709 color standard
Accurate color reproduction is one of the important indicators for measuring professional monitors. ATEM215S built-in 3D-LUT, adopts the professional Rec.709 HD color standard, and uses the color calibration technology, with the professional instrument calibration at the factory to ensure the consistency of color reproduction of each monitor.

hdmi sdi monitor

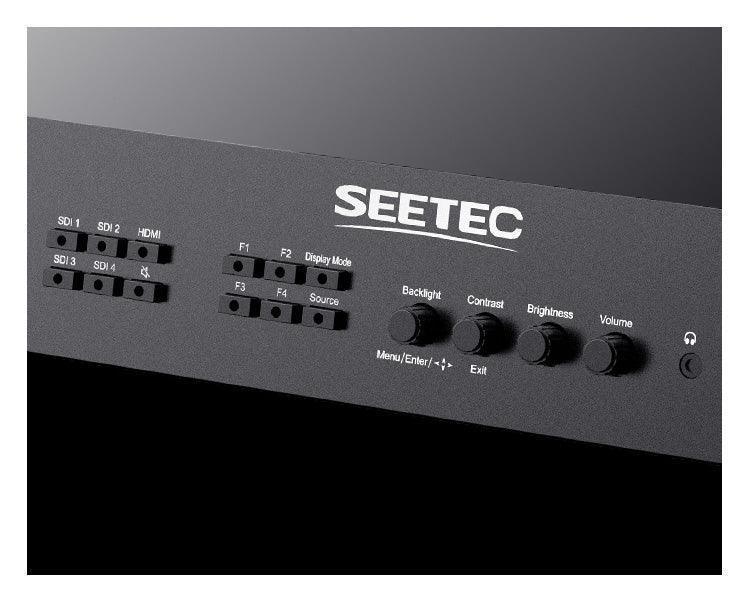

Flexible and Intuitive Button Operation
When you are busy at the shooting scene, you need to be able to easily control the equipment, and the ATEM215S can meet your needs. It can switch between one-button sources, custom shortcuts, and quickly adjust brightness, contrast, volume, etc. to make shooting easier. The backlight button design makes it easier for you to distinguish the current input signal and the shortcut keys used, easy to use even in dimly lit studio or outdoor environments.

sdi monitor

3D LUT, Recreate Film Looks
Supports up to load 36 custom LUTs
3D-LUT is a table for quickly looking up and output specific color data. By loading different 3D-LUT tables, it can quickly recombine color tone to form different color styles. Built-in 4 DE-log LUT , you also can load the custom .cube file via USB flash disk (up to load 36).

camcorder monitor sdi

HDR Monitoring
What you see is what you get
Supports HDR (high dynamic range) monitoring, for incredible clarity and details, effectively enhancing the overall picture quality. When HDR is activated, you can select Gamma and Gamut corresponding to the company Sony, Canon, Panasonic, Fujifilm, Bolex, RED, ARRI.

camera monitor sdi

Accurate waveform monitoring
Save your budget
Built-in waveform monitoring, you can choose from waveform (RGB Parade, YUV Parade, Y Parade), vectorscope, histogram, audio phase and level displays, and get broadcast accurate waveform monitoring that shows everything you need to know technically about your video and audio signals. The functions can be opened separately, and also support one key to open all scope mode (can be right/left adjustment). ATEM215S becomes the ideal choice for live production monitoring, so you no longer need to use a separate expensive scopes!

camera monitor with sdi and hdmi

Gynamic UMD
TSL3.1/4.0 Protocol
ATEM215S supports UMD of TSL 3.1/4.0 protocol, with 0-126 TSL address selection, and Max 16 letters displayed. The UMD inputs via RS485 port and outputs via RS485 port.

hd sdi monitor

Tally Lights
GPI controls Red Tally and Green Tally, which not only can remind the photographer to enter the recording state, but also appreciate the convenience of TV shooting quasi-professional technology in your creation.

hdmi sdi monitor

Features

* 21.5-inch 1920x1080 full HD large screen
* Rugged aluminium housing, durable
* Flexible and intuitive button operation, easy to use)
* Mulitple display modes (single, PIP, quad)
* Supports 3D LUT Log to REC.709 and user 3D LUT upload (up to 36)
* With Waveform, Vectorscope, RGB Histogram, Focus Assist, Monochrome etc. functions, can help you accurately exposure and focus every shot.

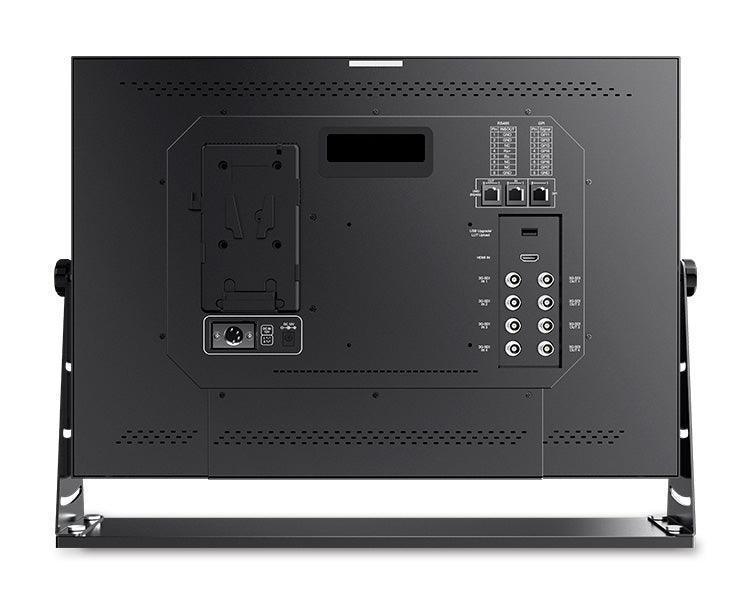

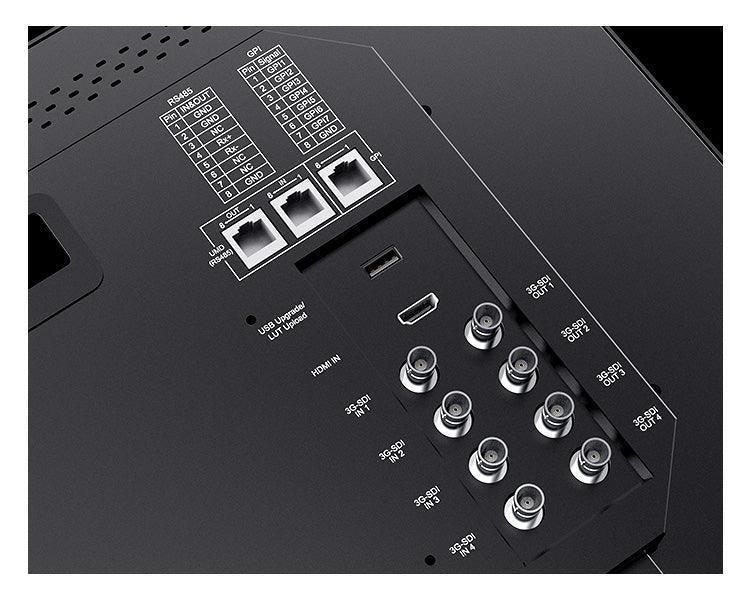

* Multiple interfaces, meet different needs (4*3G-SDI inputs and outputs, 1*HDMI input, RS485, GPI)
* Stereo Earphone output
* VESA standard mounting points support for bracket or hang wall installation

Display Spec
 Model  ATEM215S
 Screen Size  21.5" IPS
 Color Depth  16.7M
 Resolution  1920×1080 pixels
 Pixel pitch  0.08265(H) x 0.24975(V) mm
 Aspect Ratio  16:9
 Brightness  250cd/m²
 Contrast Ratio  1000:1
 Backlight  LED
 Viewing Angle  89°/89°(L/R) 89°/89°(U/D)

 Standard Accessories

  • 1×12V/4A Power Adapter
  • 1× SDI Cable
  • 1× Mini HDMI Cable
  • 1× V-mount Battery Plate (default to mount on device)
  • 1× Sunshade
  • 1× U-shape Bracket
  • 1× User Manual
