Lilliput RM-7029S Dual 7 inch 3RU rackmount SDI Monitor
Lilliput RM-7029S Dual 7 inch 3RU rackmount SDI Monitor
100 en stock
PRODUCT DESCRIPTION

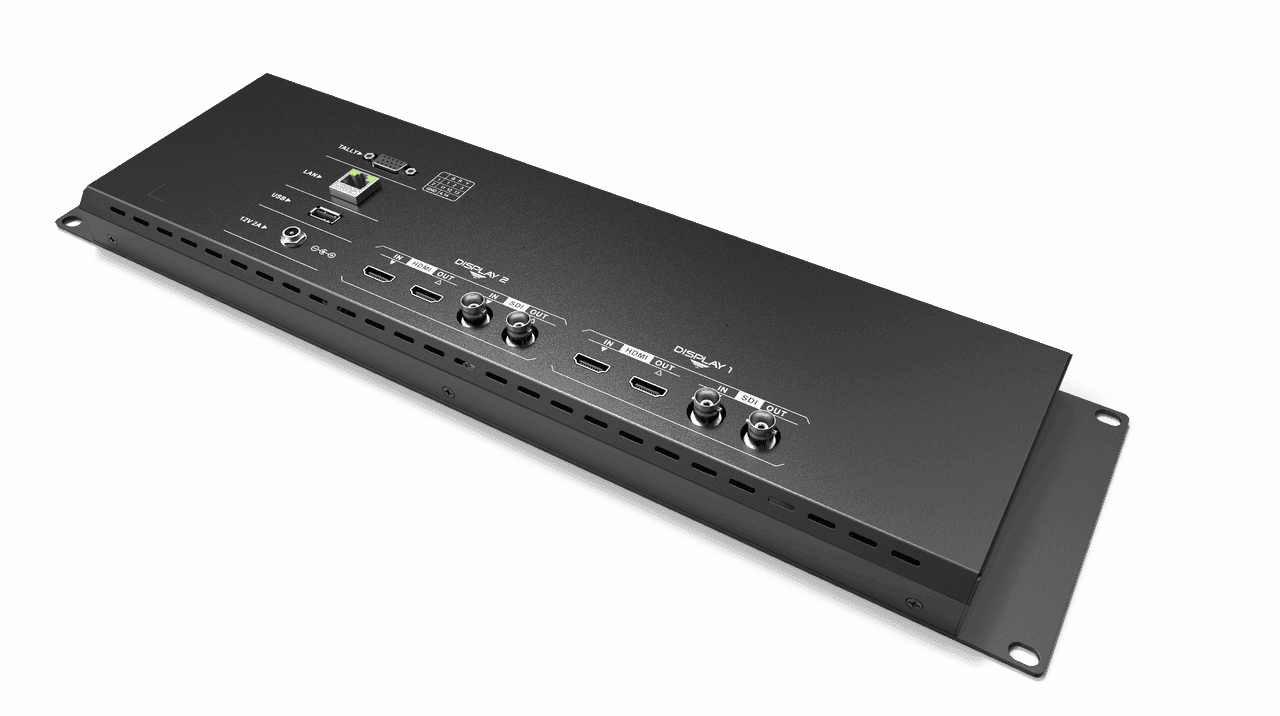

RM-7029S Dual 7 inch 3RU rackmount SDI monitor
3RU rack mount monitor with dual 7″ IPS screens, which is suitable for monitoring from two different cameras simultaneously.It comes with SDI and HDMI input and output, which support up to 1080p 60Hz SDI and 2160p 60Hz HDMI videos. Just add signal cables to expand more diverse display solutions through loop output interfaces. Help creating a camera video wall. Also all monitors can be perfectly adjusted by a connected computer under the control of software.So you can focus on other operation on the workbench at the same time.
2 x7" HDMI2.0 & 3G-SDI Rack Mount Monitor
Rack mount monitor for broadcast & live streaming. Application for video wall & broadcast trucks.
Full HD Independent Dual Display
The 7" 16:10 LCD panel with 1920 x1200 full HD resolution, 2000:1 high contrast, 160 Degree viewing angles, 400 cd/m 2 brightness, which offers outstanding viewing experience.
SDI & HDMI In/Out
Monitoring up to 1080p 60Hz SDI and 2160p 60Hz HDMI videos. Just add signal cables to expand more diverse display solutions through loop output interfaces. Help creating a camera video wall.
Precise Scope Views
The video production manager can analyze the quality of image by calling up different scopes, for example, false color, level meter, histogram. And both video sources are displayed independently.
Easy Remote Control
All monitors can be perfectly adjusted by a connected computer under the control of software. So you can focus on other operation on the workbench at the same time.
RM-7029S Specifications
Display | |
Size | Dual 7″ LED backlit |
Resolution | 1920×1200 |
Brightness | 400cd/m² |
Aspect ratio | 16:10 |
Contrast | 2000:1 |
Viewing Angle | 160°/160°(H/V) |
HDR | ST 2084 300/1000/10000 / HLG |
Supported Log Formats | Slog2 / Slog3, Arrilog, Clog, Jlog, Vlog, Nlog or User… |
LUT Support | 3D-LUT (.cube format) |
Video Input | |
SDI | 2×3G |
HDMI | 2×HDMI(supports up to 4K 60Hz) |
LAN | 1 |
Video Loop Output | |
SDI | 2×3G-SDI |
HDMI | 2×HDMI 2.0 (supports up to 4K 60Hz) |
Supported In / Out Formats | |
SDI | 1080p 60/50/30/25/24, 1080pSF 30/25/24, 1080i 60/50, 720p 60/50… |
HDMI | 2160p 60/50/30/25/24, 1080p 60/50/30/25/24, 1080i 60/50, 720p 60/50… |
Audio In/Out | |
Speaker | - |
Ear Phone Slot | 2 |
Power | |
Current | 1.5A |
DC In | DC 10-24V |
Power Consumption | ≤16W |
Environment | |
Operating Temperature | 0℃~50℃ |
Storage Temperature | -20℃~70℃ |
Other | |
Dimension(LWD) | 480×131.6×29.3mm |
Weight | 2.2kg |
Packing List
- Lilliput RM-7029S Dual 7" 16:10 Full HD 3RU Rackmount LED Monitor
- 12V 2A DC Power Adapter
- Tally Connector
- Manual
- Lilliput 1 Year Limited Warranty
