Lilliput Q13 13.3" 12G-SDI studio / broadcast monitor

Lilliput Q13 13.3" 12G-SDI studio / broadcast monitor

Prix habituel $1,599.00
Prix habituel Prix promotionnel $1,599.00
En vente Épuisé
Taxes incluses. Frais d'expédition calculés à l'étape de paiement.

PRODUCT DESCRIPTION

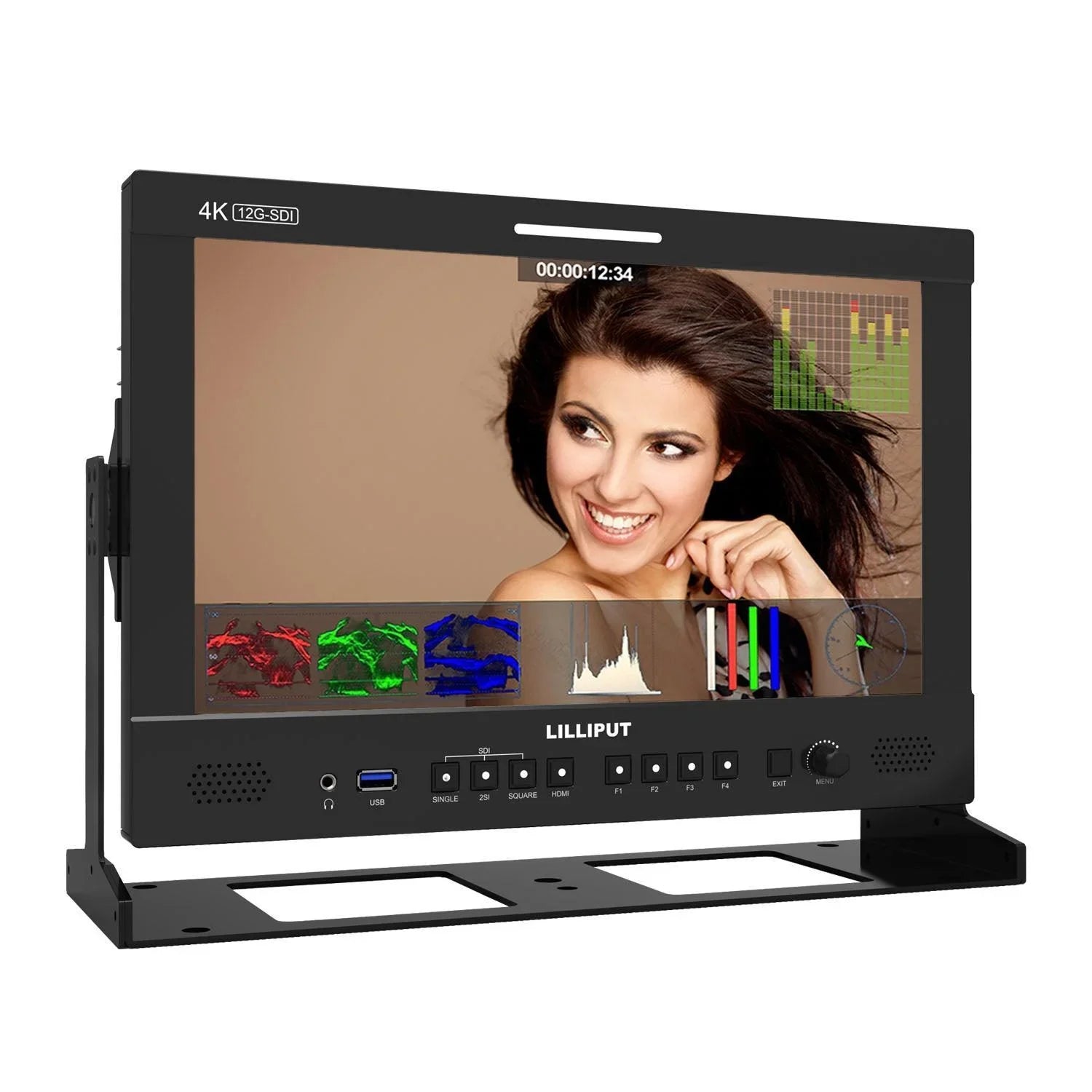

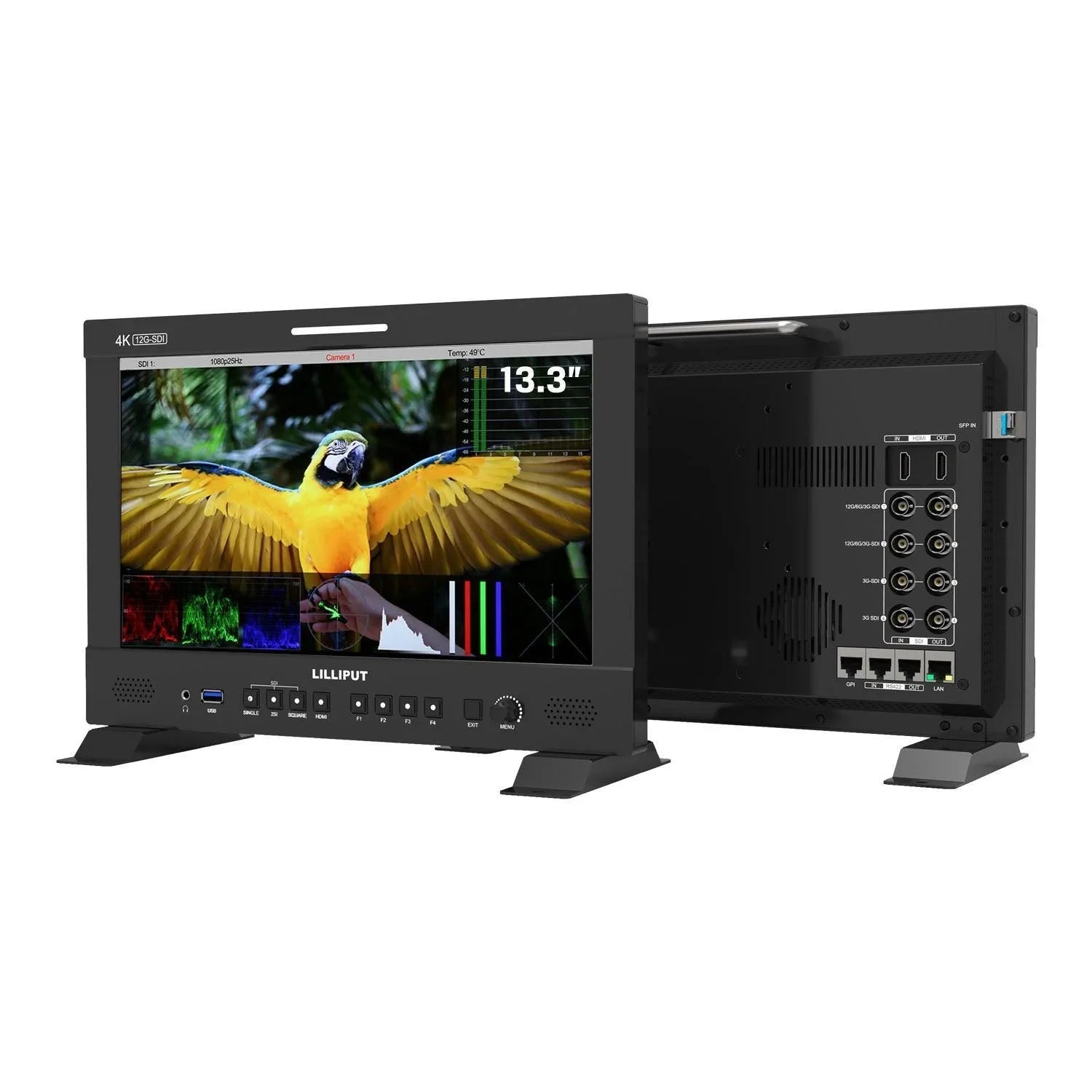

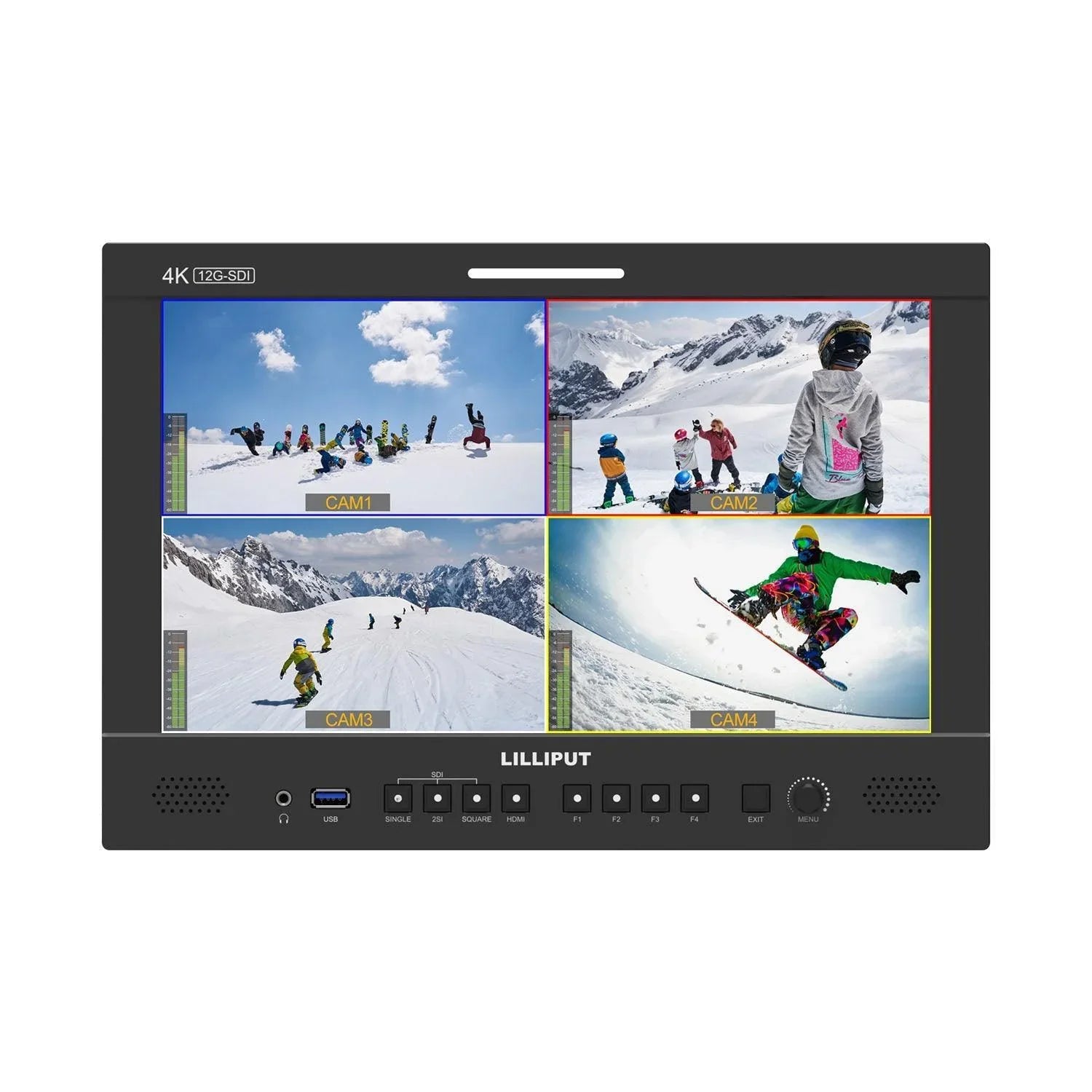

Q13 13.3" 12G-SDI studio / broadcast monitor

Lilliput Q13 is a professional studio monitor, packed with features and facilities for the professional photographer, videographer, or cinematographer. Compatible with a multitude of inputs – and featuring the option of a 12G SDI and 12G-SFP Fiber Optic input connection for broadcast quality monitoring, It also features Audio Vectoring using a Lissajous graph shape allowing you to visualize the depth and balance of a stereo recording. You also can connect your computer to control the monitor via applications.

DISPLAY Panel 13.3"
Physical Resolution 3840*2160
Aspect Ratio 16:09
Brightness 300 cd/m²
Contrast 1000:01:00
Viewing Angle 178°/178°(H/V)
HDR ST2084 300/1000/10000/HLG
Supported Log Formats SLog2 / SLog3 / CLog / NLog / ArriLog / JLog or User…
Look up Table(LUT)support 3D LUT (.cube format)
Technology Calibration to Rec.709 with optional calibration unit

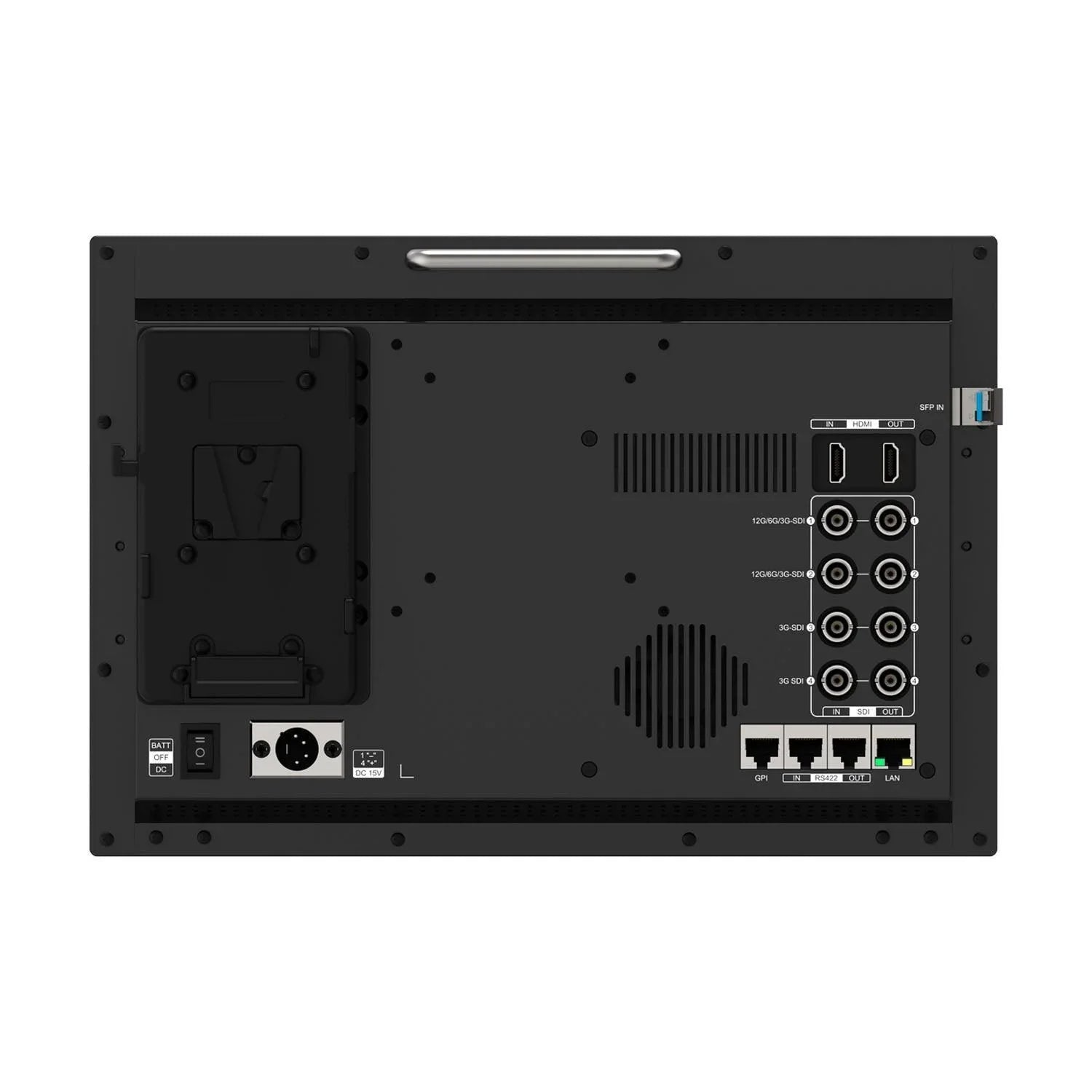

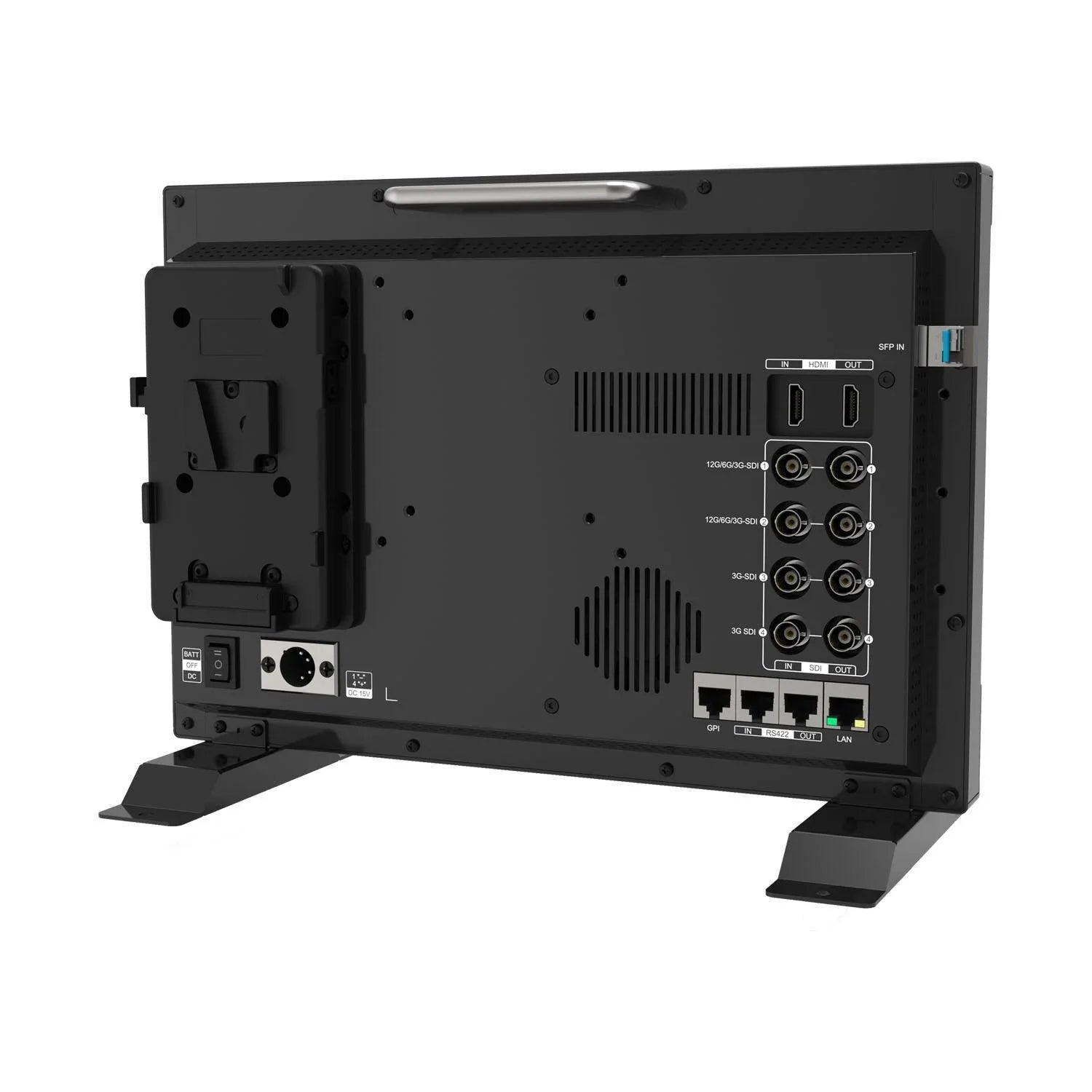

VIDEO INPUT SDI 2×12G, 2×3G (Supported 4K-SDI Formats Single/Dual/Quad Link)
SFP 1×12G SFP+(Fiber module for optional)
HDMI 1×HDMI 2.0
VIDEO LOOP OUTPUT SDI 2×12G, 2×3G (Supported 4K-SDI Formats Single/Dual/Quad Link)
HDMI 1×HDMI 2.0
SUPPORTED FORMATS SDI 2160p 24/25/30/50/60, 1080p 24/25/30/50/60, 1080pSF 24/25/30, 1080i 50/60, 720p 50/60…
SFP 2160p 24/25/30/50/60, 1080p 24/25/30/50/60, 1080pSF 24/25/30, 1080i 50/60, 720p 50/60…
HDMI 2160p 24/25/30/50/60, 1080p 24/25/30/50/60, 1080i 50/60, 720p 50/60…
AUDIO IN/OUT (48kHz PCM AUDIO) SDI 16ch 48kHz 24-bit
HDMI 8ch 24-bit
Ear Jack 3.5mm
Built-in Speakers 2
REMOTE CONTROL RS422 In/out
GPI 1
LAN 1
POWER Input Voltage DC 12-24V
Power Consumption =31.5W (15V)
Compatible Batteries V-Lock or Anton Bauer Mount
Input Voltage(battery) 14.8V nominal
ENVIRONMENT Operating Temperature 0C~50C
Storage Temperature 2.4kg

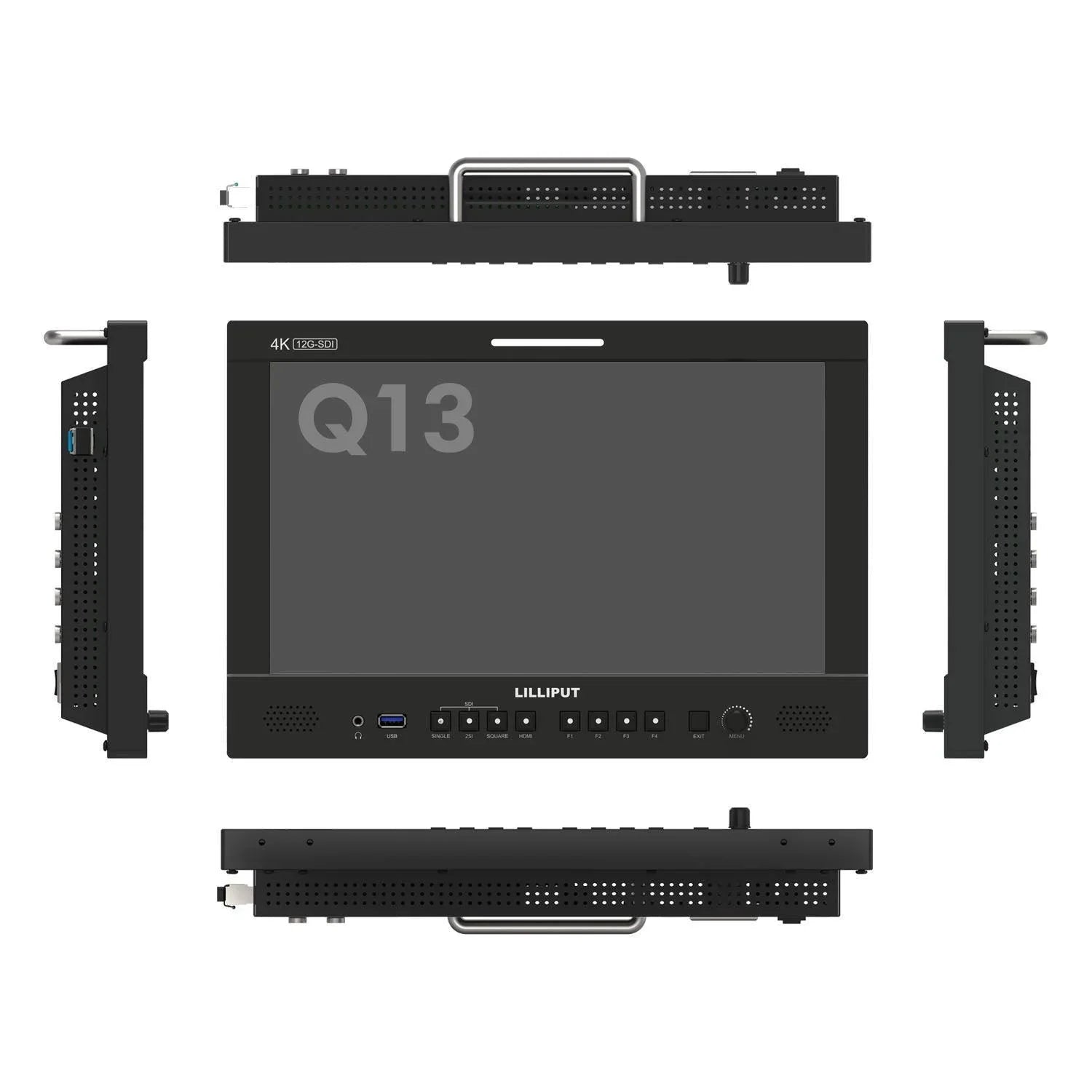

OTHER Dimension(LWD) 340mm × 232.8mm × 46mm
Weight 2.4kg
