FEELWORLD LUT11S 10.1 Inch Touch Screen DSLR Camera Field Monitor
Authorized Dealer
Configurer
Authorized Dealer
Authorized Dealer

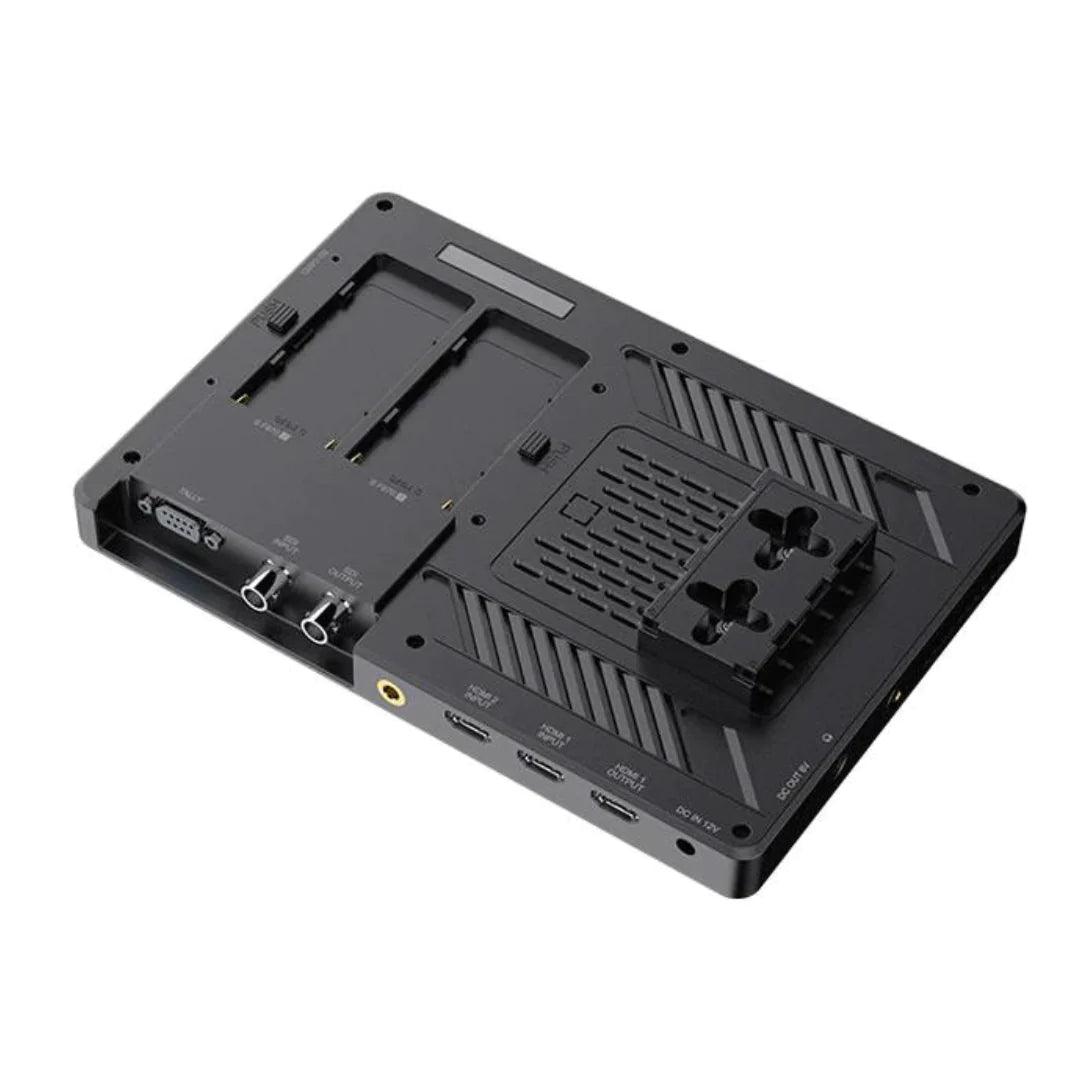

FEELWORLD LUT11S is a 10.1-inch with full touch screen, ultra brightness 2000nit professional camera monitor. Supports 3G-SDI and up to 4K@60Hz HDMI signal input and output. Provides a series monitoring and framing tools with new menu layout, various numerical parameters are clear at a glance, making the operation easier. There is a F970 external install and power kit on the rear of LUT11S, which can install such as wireless transmission, LED light, etc.
The monitor supports REC709、DCIP3、BT2020 multiple color gamut, presenting rich color, meet the different needs of photographers for color gamut.
The LUT11S has an ambient light sensor, from a dim studio to a sunny location, from midnight moonlight to noon sunshine, it can automatically adjust the monitor brightness to fit your filming environment.
LUT11S adopts new UI menu, take the software functions are iconized, it is more convenient and quickly to operate the function.
Easy and sensitive operation, make your filming more efficiency
The innovative touch screen LCD user interface provides incredible control. You can use simple tap and swipe gestures for the important monitoring functions without buttons. Plus, you can also operate via scroll wheel key.
Our flexible OS is packed with an extensive suite of scopes, all 1-touch away and simple to use. The Video OS includes tools for focus, framing & exposure (waveform, RGB parade, vectorscope, RGB histogram, histogram, embedded audio, focus peaking, zoom, zebra, false color, safe frames, etc.) as well as a flexible 3D LUT implementation (use built-in LOG to Rec.709 video or upload .cube files) and options for anamorphic de-squeeze monitoring.
The LUT11S supports 3G-SDI signal LUT loop-out function, which can output custom LUT image to other displays, so the director and photographer can see the images with LUT at the same time. When the signal is SDI, and you need to use this function, just turn on "LUT Switch" and "SDI Out (LUT)" on the menu.
LUT11S supports HDR (high dynamic range) monitoring, for incredible clarity and detail, simplifies the complexities of shooting Log and HDR, helping you to replicate post-production workflows at the moment when it matters most–while shooting. When the HDR function is turned on, you can select Gamma and Gamut corresponding to the camera Sony, Canon, Panasonic, Fujifilm, Bolex, RED, ARRI.
The monitor is equipped with 3 standard 1/4”mounting threads (bottom, right, left side), you can easily mount it on the camera or other types of equipment with a magic arm, bracket, etc.. Whether it is horizontal or vertical shooting, you can accurately monitor.
| Model | LUT11S |
| Screen Size | 10.1" IPS |
| Resolution | 1920x1200 pixels |
| Pixel Pitch | 0.113(W) x 0.113(H) (mm) |
| Aspect Ratio | 16:10 |
| Brightness | 2000cd/m² |
| Contrast Ratio | 800:1 |
| Backlight | LED |
| Viewing Angle | 85°/85°(L/R) 85°/85°(U/D) |
| Input Voltage | DC7～24V |
| Power Consumption | ≤28W |
| Working Temperature | -10°C~50°C |
| Storage Temperature | -20°C~60°C |
| Install Way | 1/4"-20 Thread Socket ( Left, Right, Bottom) |
| Unit Size | 242Lx156Hx23D(mm) |
| Unit Weight | 810g |
| Color Box Size | 265L*110W*212H(mm) |
| Outer Carton Qty | 10 |
| Outer Carton Size | 590*270*480 (mm) |
| Gross Weight | kg |
Packaging List
- 1× Monitor
- 1× Mini HDMI Cable
- 1× Power Adapter
- 1× U-shape Bracket
- 1× Manual
