Lilliput
Lilliput T5U 5 Inch Live streaming On-Camera Touchscreen Monitor
Authorized Dealer
Optionen wählen
Authorized Dealer
Authorized Dealer
PRODUCT DESCRIPTION

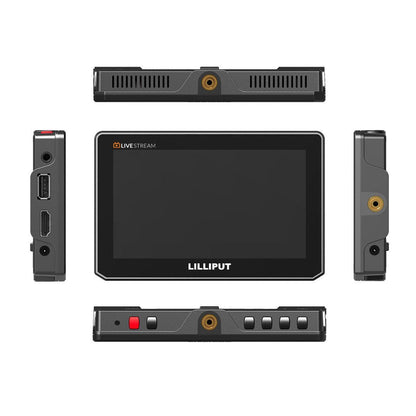

T5U 5 Inch Live streaming On-Camera Touchscreen Monitor

This compact, lightweight, fully featured Lilliput T5U 5" Live Streaming Touch Screen Monitor is designed to take on almost any production. The 1920 x 1080 LCD screen features 400 cd/m² brightness, 1000:1 contrast ratio, and 170° viewing angle. Its HDMI input is compatible with DSLRs, mirrorless cameras, and professional camcorders and can input up to UHD 4K 3840 x 2160 video at 60 fps. It also features a loop-through HDMI output for additional displays.
- 5 inch IPS screen with 1920×1080 resolution, capacitive touch screen
- 4K HDMI 2.0 input, supporting up to 4K 60 Hz
- Output to USB for live streaming
- Wide color space supporting 98% DCI-P3, HDR, 3D-LUT
- Dual-purpose battery plate: Sony NP-F, Canon LP-E6; DC 8V output
- Built in Video & Audio Capture Function
- Waveform,Peaking,False Color,Check Field,Scan Mode,Markers
- HDMI EDID : 4K/2K
| DISPLAY | Panel | 5” IPS |
| Touch Screen | Capacitive | |
| Physical Resolution | 1920×1080 | |
| Aspect Ratio | 16:9 | |
| Brightness | 400cd/m2 | |
| Contrast | 1000:1 | |
| Viewing Angle | 170°/ 170°(H/V) | |
| HDR | ST 2084 300/1000/10000 / HLG | |
| Supported Log Formats | Slog2 / Slog3, Arrilog, Clog, Jlog, Vlog, Nlog or User… | |
| LUT support | 3D LUT (.cube format) | |
| VIDEO INPUT | HDMI | 1×HDMI2.0 |
| SUPPORTED FORMATS | HDMI | 2160p 24/25/30/50/60, 1080p 24/25/30/50/60, 1080i 50/60, 720p 50/60… |
| AUDIO IN/OUT (48kHz PCM Audio) |
HDMI | 8ch 24-bit |
| Ear Jack | 3.5mm – 2ch 48kHz 24-bit | |
| POWER | Input Voltage | DC 7-24V |
| Power Consumption | ≤7W / ≤17W (DC 8V power output in operation) | |
| Compatible Batteries | Canon LP-E6 & Sony F-series | |
| Power Output | DC 8V | |
| ENVIRONMENT | Operating Temperature | 0°C~50°C |
| Storage Temperature | -10°C~60°C | |
| OTHER | Dimension(LWD) | 132×86×18.5mm |
| Weight | 190g | |
| FORMATS FOR LIVE STREAMING |
USB | 1×USB2.0 |
| USB | 1920×1200, 1920×1080, 1680×1050, 1600×1200, 1440×900, 1368×768, 1280×1024, 1280×960,1280×800, 1280×720, 1024×768, 1024×576, 960×540, 856×480, 800×600, 768×576, 720×576,720×480, 640×480, 640×360 |
|
| Support OS | Windows 7/8/10, Linux (Kernel version 2.6.38 and above), macOS (10.8 and above) |
|
| Software Compatibility | OBS studio, Skype, ZOOM, Teams, GoogleMeet, YoutubeLive, QuickTime Player, Facetime,Wirecast, CAMTASIA, Ecamm.live, Twitch.tv, Potplayer, etc. |
|
| Compatible SDK | DirectShow (Windows), DirectSound (Windows) |
Packing List
- T5U 5" 16:9 Full HD Touchscreen HDMI 2.0 On-Camera LCD Monitor
- HDMI A-C Cable
- Mini Hot Shoe
- Frame for Sunshade
- 2x Sunshade
- Electronic User Guide Card
- Lilliput 1 Year Limited Warranty
