Feelworld Authorized Dealer
FEELWORLD LIVEPRO L1 V1 Multi Kamera Video Mixer Switcher
FEELWORLD LIVEPRO L1 V1 Multi Kamera Video Mixer Switcher
Niedriger Lagerbestand: 10 verbleibend
In order to improve user experience, we update LIVEPRO L1 switcher to the new version LIVEPRO L1 V1, it changes the appearance, which is lighter and easier to dissipate heat.
2. Modify the PVW window ratio to 16:9
4. Optimized the phenomenon that the output without audio after switching on and off.

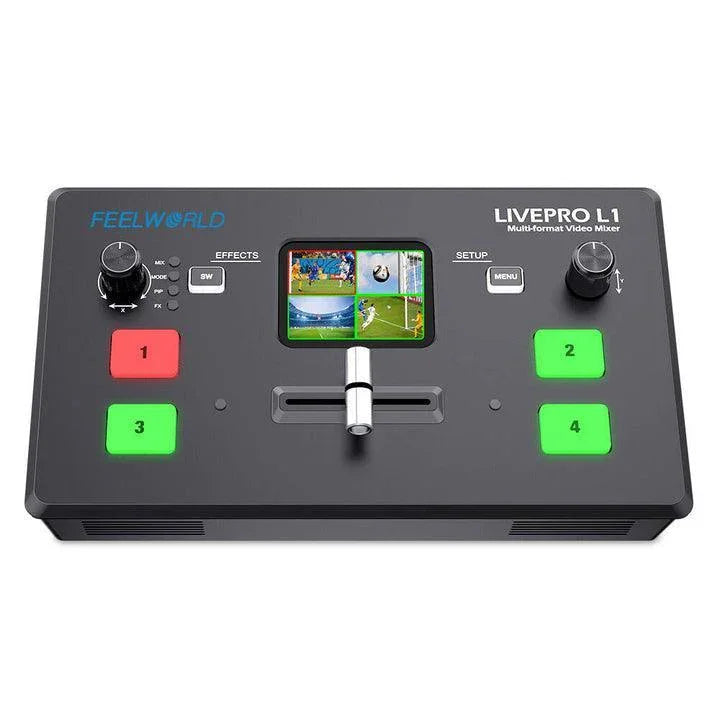

Exquisite and Flexible Control Panel

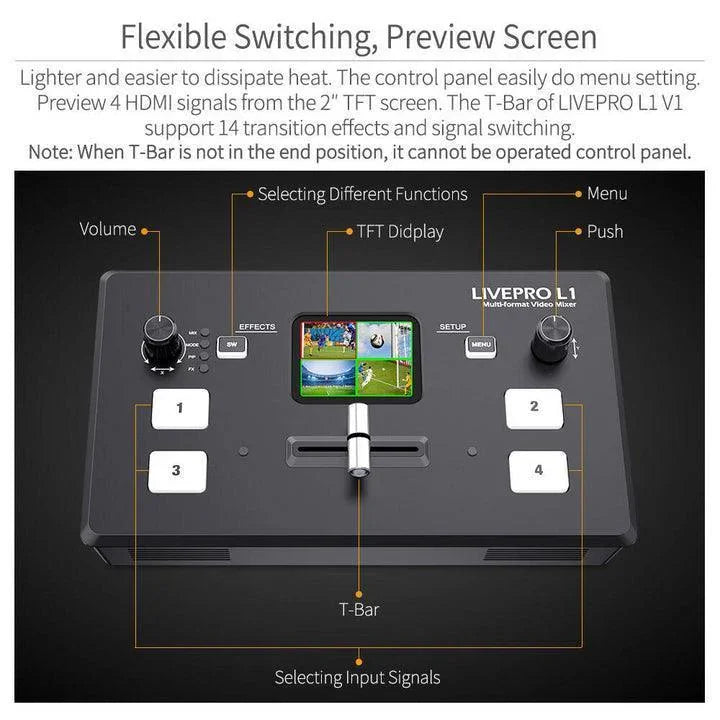

The LIVEPRO L1 V1 has an exquisite and compact control panel. The 4 buttons are for selecting input signals, green flashing means the signal has been selected, then switch the T-Bar, the selected signal will be displayed on the screen seamlessly, the green button changed to red after switched. The MENU button is for menu setting, the SW button is for selecting different functions such as mixing, PIP, transition time setting and the other functions. The left knob is for voice volume controlling, the right knob is for menu setting as well. From the TFT screen, we can preview 4 HDMI signals and easily do menu setting.
• When you choose T-Bar to switch signal sources or transition effects, T-Bar must be pushed to left end or right end. When using the menu operation, T-BAR should also be in left end or right end, otherwise it cannot be operated.
• When you would like to connect or embed audio, you must select the external or embedded audio source in the "AUDIO" menu firstly.
Compact and Light Weight Design
The LIVEPRO L1 V1 is a mini switcher, that is small enough to fit into equipment cases and camera bags. Designed to integrate with typical video production workflows, the LIVEPRO L1 V1 has a screw tap for standard video mounts and conveniently attached onto a tripod to stay out of the way. It is light weight design makes it ideal for mobile video applications too.
Multi- Application, One Solution
For normal people, they need smaller and simpler product to deal with the live applications. The LIVEPRO L1 V1 can be done this, which is with simple and compact design, rich special effects switching function, the screw hole can be fixed the switcher on the tripod. With these, live streaming and multi signal control will be simpler and easier done by single person.Faster Video Production, Plus Live Streaming

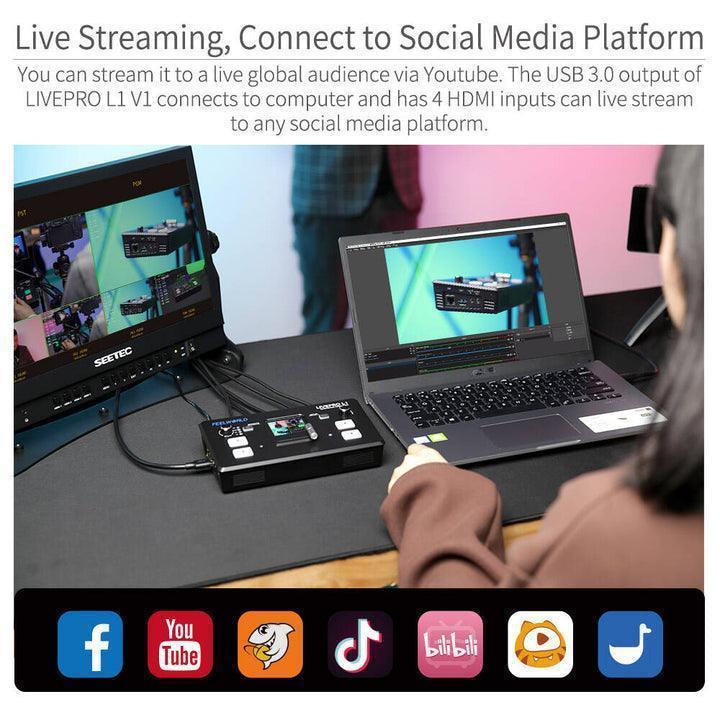

Live production is the fastest way to complete a finished program, plus you can stream it to a live global audience via Youtube at the same time. The USB 3.0 output of LIVEPRO L1 V1 connects to any computer and looks like a built in webcam, so all streaming software for social media platforms work! With up to 4 HDMI inputs you can set up multiple camera angles such as wide shots along with independent close ups of each person in the performance. Or you can connect to a computer with a PowerPoint slide show, video clip playback, websites or gaming consoles. All switching is in real time so you can live stream to any social media platform such as Youtube, Facebook, Tik Tok, Douyu TV and many more!Flexible T-Bar Switching
The T-Bar of LIVEPRO L1 V1 support 14 transition effects and signal switching. Under T-Bar mode, pushing green button, it will flash and push T-Bar to the end (left or right), the source will be switched with selected transition effect. After switching, green turns to red. It is very suitable for video special effects switching of small outdoor scenes to meet the needs of video switching such as radio and television, outdoor sports events, school courseware production, etc.
Note: When T-Bar is not in the end position, no source can be selected.AUDIO IN and AUDIO OUT
LIVEPRO L1 V1 with AUDIO IN and OUT. The output interface can be connected to speakers, headsets, etc.; The AUDIO IN interface is a linear input interface, which is connected to digital signal. The microphone collects analog signals, so when the microphone is connected to the LIVEPRO L1 V1 audio input interface directly, there is no way to receive audio.
• If there is microphone but without audio interface, please connect the microphone to the MIC interface of computer.
• If there is wireless microphone and it with earphone interface, please connect this interface to AUDIO IN of LIVEPRO L1 V1.
• If there is device of MIC to Line output, please connect to AUDIO IN of LIVEPRO L1 V1.

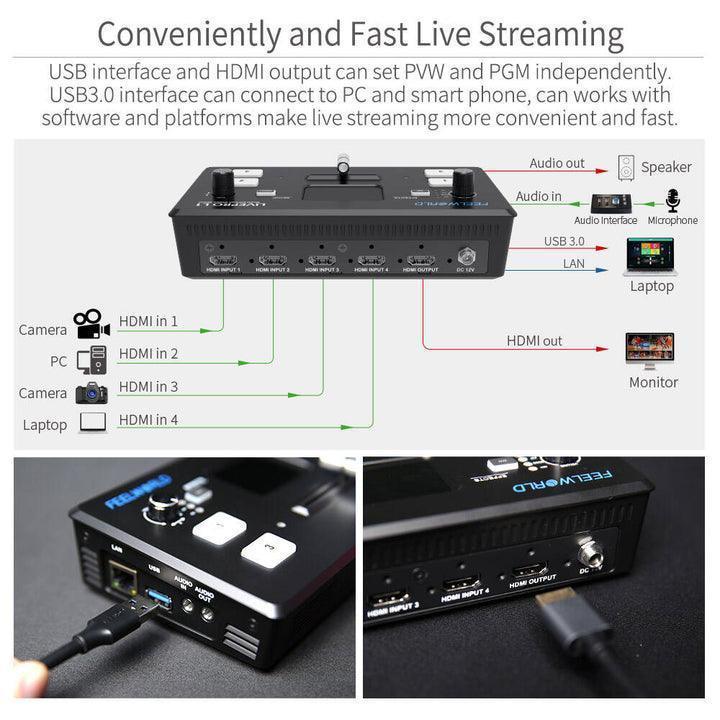

USB interface and HDMI output can set PVW and PGM independently
Allowing you to choose freely
The USB interface of LIVEPRO L1 V1 also can be used as signal output except HDMI output. They can connect computer or monitor to set PGM and PVW independently. You can choose to set any of them as preview or PGM as you like.
6 Picture PVW, PIP
When the switcher is connected with an external expansion screen, it can preview real-time monitoring on 6 pictures, including PGM, PST and 4-channel HDMI input signals, and the audio column is displayed. Plus, you can set 9 layouts for PIP (Picture in Picture) mode. This is very useful for large-scale multi stand field production.
USB 3.0 Live Streaming
Make Live Brocasting More Convenient and Fast
Note: OBS Streaming is available to download on https:/obsproject.com/downloadMultiple Application Scenarios Suitable

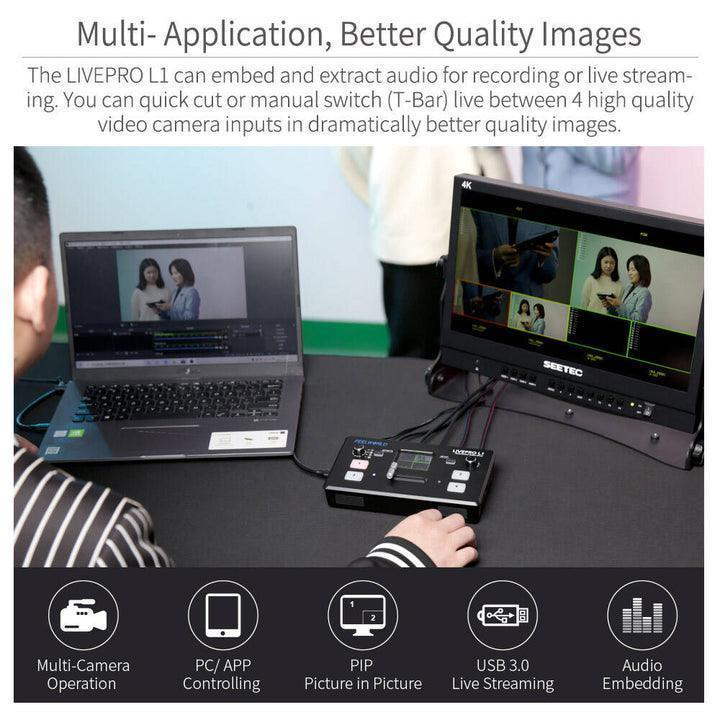

LIVEPRO L1 V1 is widely used in sports events, e-sports competition, business presentation, wedding , character interview, education and training, etc.
Add Exciting Video Effects
One of the benefits of LIVEPRO L1 V1 is the professional production values that are possible using the range of built in video effects. Push button SW to open up the transition effect menu, use knob to select the desired transition effect icon and push the knob to confirm. The "cut" in PC Controlling, Remote Operation
After connecting the LAN port to the computer, not extra software need to be installed, the software XPOSE holds on the computer, the operation is same as the switcher. So as to realize remote controlling, imagine using the switcher from a control room and building a professional broadcasting studio where the control room can be separated away from the performance or interviews. In addition, it allows you to add as many panels as you like all at the same time.
PS: Please download the XPOSE software from the "DOWNLOAD" module of this page, please don not put it in the system disk (C disk) after download.

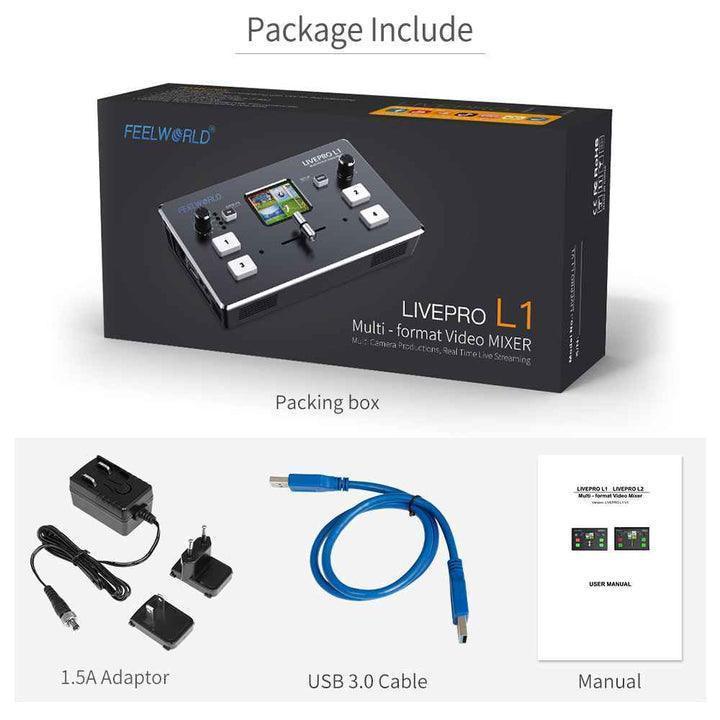

Packing List
1× 1.5A Adaptor
1× USB 3.0 Cable
1× Manual
Share
Buen producto, a diferencia de la competencia como lo es Blackmagic el livepro L1 tiene una pequeña pantalla donde puedes monitorear las 4 entradas HDMI que está saliendo al aire. Eso marca la diferencia.
I initially had an issue where the entire case seemed to be carrying a voltage... well... I discovered the outlet I had plugged my PC into wasn't properly grounded so the USB ground was floating and when I had the switcher plugged in via USB that floating ground was grounded to the unit's case and then through me into the actual earth ground of my basement work room's floor. Oops! Once I cleared that up the issue went away.Aside from that, though, it's excellent. The t-bar movement is smooth and pretty accurate, the menu structure is usable (although a little confusing at first), and it works perfectly as advertised. I've been super happy with it.Before I bought it I was wondering about the t-bar operation though, so I thought I'd post clarification in case anyone (like me) wonders the same thing:If you stop moving the t-bar at any point in its travel the video will hold in that state, ie if you have it set to a crossfade effect and stop the t-bar in the middle your output will be the two video sources superimposed on each other with the "new" source being somewhat transparent. The earlier you stop the more transparent the new source will be. It will happily hold in this state indefinitely, and you can either complete the movement of the t-bar to switch source entirely or go backwards and return to the original source only. You can't change the selected sources until the t-bar is completely on one side or another (as expected) but you CAN use this to do a video-on-video type effect without any trouble.
Excellent for communicating with multiple People from different locations
This product met all of my expectations. I highly recommend it.
Easy to use. Good alternative to black magic.
